| Parameter | Specification |
|---|---|
| Rated Load Capacity | 5,300 kg |
| Operating Weight | 16,729 kg (Shangchai) / 16,756 kg (Weichai) |
| Bucket Capacity | 2.5 – 5 m³ |
| Wheelbase | 3,370 mm |
| Machine Dimensions (L×W×H) | 8,419 × 2,963 × 3,465 mm |
| Traction Force | 179 kN |
| Breakout Force | 176 kN |
| Dump Clearance | 3,160 mm |
| Type | Fixed-shaft |
| Gears | F2 / R1 |
| Torque Converter | Single-stage, four-element |
| Modelo | Tr220 -7 |
| Speed (Forward I) | 12.3 km/h |
| Speed (Forward II) | 39 km/h |
| Speed (Reverse I) | 16.3 km/h |

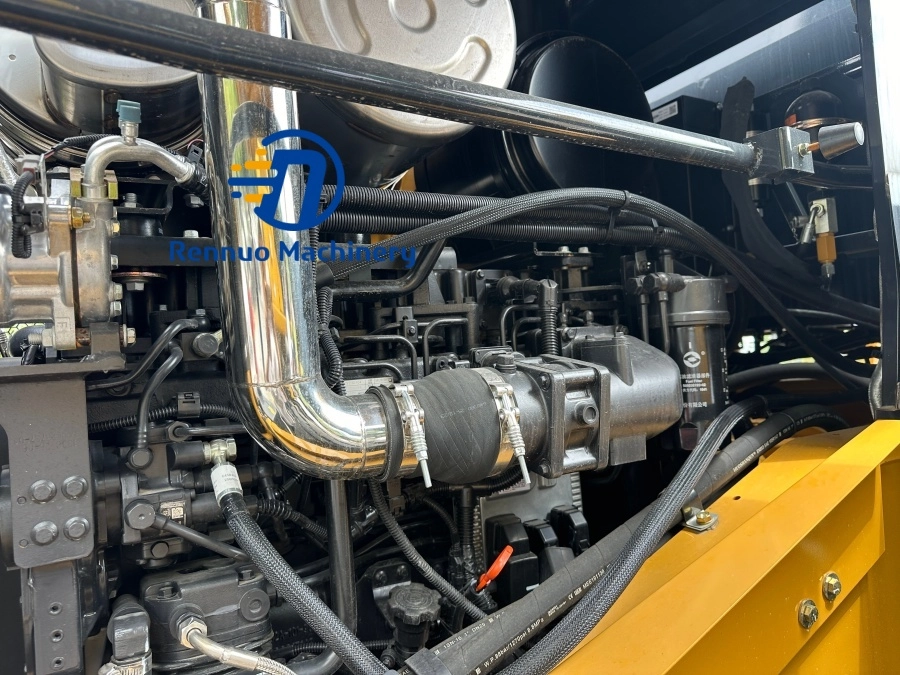

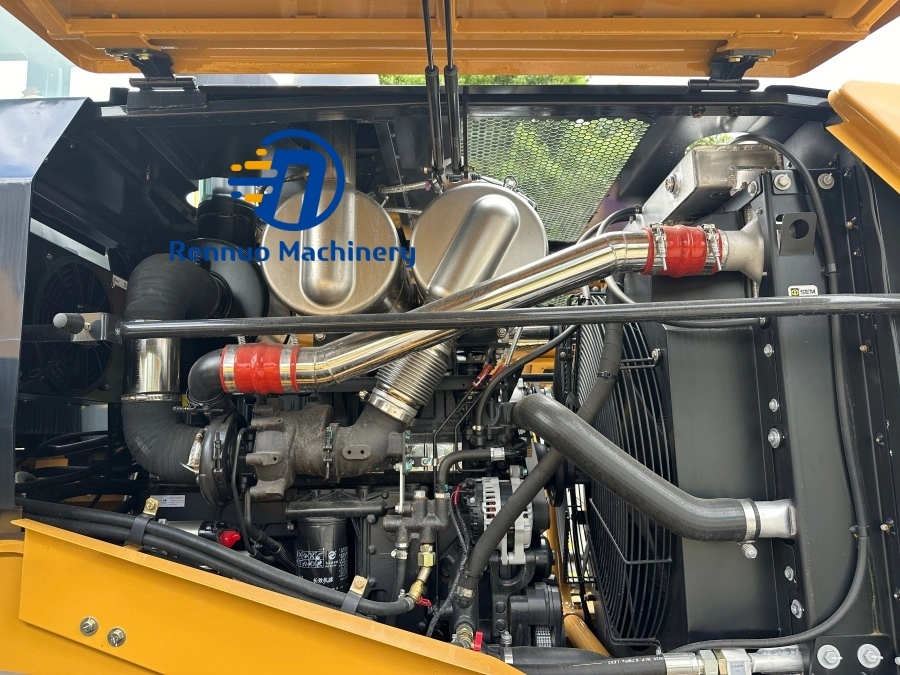

| Modelo | SC9DF230.1G4 (Shangchai) / WP10HG230E474D (Weichai) |
| Rated Power | 170 kW |
| Rated Speed | 2,000 rpm |
| Displacement | 8.8 L (Shangchai) / 9.5 L (Weichai) |

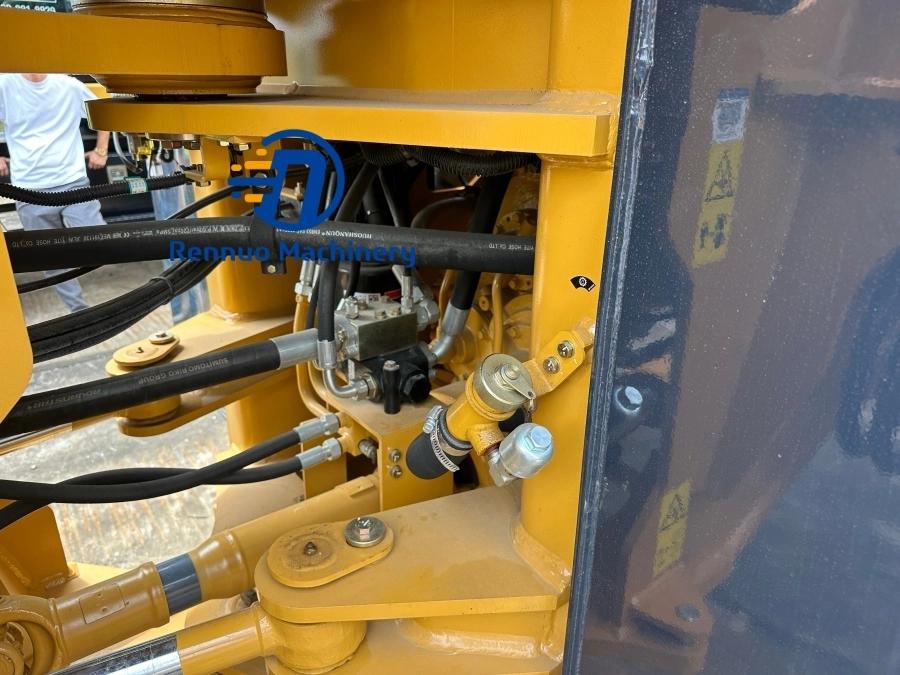

| Type | Fixed-displacement confluence hydraulic system |
| Lift Time | 4.7 s |
| Total Cycle Time (Raise, Dump, Lower) | 8.9 s |
| System Pressure | 19 MPa |
| Service Brake | Air-over-oil, caliper disc brake |
| Parking Brake | Internal expanding shoe brake |
| Type | Load-sensing priority steering |
| Steering Pump Type | Gear pump |
| System Pressure | 16 MPa |
| Articulation Angle | 38° ± 1° |
| Main Reduction | Single-stage spiral bevel gear |
| Final Reduction | Single-stage planetary gear |
| Rear Axle Oscillation | ±11° |
| Modelo | 23.5-25 |
| Type | Bias-ply |
| Ply Rating | 16 |
| Tread Pattern | L-3 |
Observações: Procedimentos completos, 1 ano para garantia de máquinas
